Why Drop-In Interchangeability Matters in Multi-Cavity Injection Molds

In multi-cavity injection molds, replacement parts are not judged only by nominal size. They are judged by whether they can be installed without bench correction, whether they keep cavity-to-cavity consistency stable, and whether they help production continue without introducing new variation.

That is why interchangeability matters.

For many mold buyers, the word sounds simple. In practice, it is one of the clearest dividing lines between a component supplier that can machine a part and one that can support real production.

Quick Answer: What Does “Drop-In Interchangeability” Mean?

A drop-in interchangeable mold component is a replacement part that can be installed without extra hand fitting while maintaining the intended functional relationship in the mold.

In practical terms, that usually means:

• the replacement part matches the approved datum logic
• critical diameters, fits, and contact areas stay consistent
• the new part does not introduce flash, leakage, or alignment drift
• maintenance downtime is reduced because the part fits as intended

This matters even more in multi-cavity molds, where one unstable replacement part can affect not just one molded part, but an entire production balance.

Why the Problem Becomes Bigger in Multi-Cavity Tools

In a low-cavity mold, fitting variation may still be caught and corrected before it becomes a major production issue.

In a multi-cavity mold, the same issue scales faster.

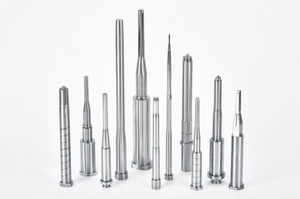

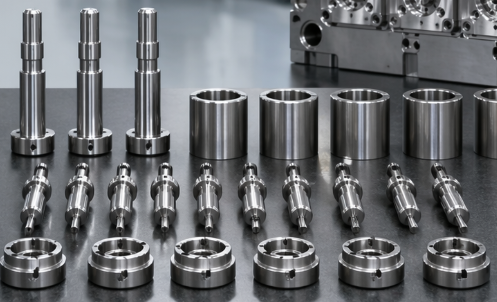

A small dimensional difference in one core pin, sleeve, insert, or thread-related component can create:

• cavity-to-cavity variation
• unstable sealing performance
• inconsistent thread engagement
• flash or mismatch in selected cavities
• additional maintenance and longer downtime

The bigger the cavity count, the less room there is for “close enough.”

The Real Issue Is Not Only Tolerance

Many buyers ask for a tolerance and assume that is enough.

It usually is not.

A part can meet a nominal dimension and still perform poorly if the critical relationships are unstable. In mold components, what matters is often not only size, but how features relate to the working datum and to each other.

That is why interchangeability is usually built on four things:

1. Stable datum logic

The supplier must understand which axis, face, or locating feature actually controls the part in the mold.

2. Relationship control

Diameters, steps, sealing zones, and thread-related surfaces need to be controlled as a system, not as isolated numbers.

3. Process repeatability

A good part made once is not enough. The supplier needs a repeatable machining and finishing route that supports replacement parts later.

4. Inspection that matches function

Inspection should confirm fit-critical relationships, not just a list of disconnected sizes.

Where Buyers Commonly Miss the Risk

The biggest sourcing mistake is assuming all replacement parts are interchangeable because they came from the same drawing.

In reality, interchangeability can break down when:

• machining routes change between batches
• datum logic is not controlled the same way
• finish or heat treatment shifts the working fit
• relationship features are not inspected consistently
• replacement parts are quoted only on price, not process stability

This is why spare-part sourcing should be treated as a production-risk decision, not just a purchasing task.

What Good Suppliers Usually Do Differently

A stronger component supplier will usually discuss more than the print.

They will typically review:

• which surfaces are functional and which are only nominal
• where concentricity, runout, or step relationships matter
• what finish route supports the intended fit
• how to keep repeat orders consistent
• how inspection should follow the working datum

They are also more likely to think in terms of maintenance logic:

• which parts should be treated as wear parts
• which parts should be stocked as spares
• which parts need drop-in replacement consistency most urgently

Why This Matters in Packaging and Medical Mold Programs

This issue becomes especially important in molds where product consistency is highly sensitive to small component changes.

In packaging applications, instability in fit-critical components can affect thread engagement, cap sealing, and closure consistency.

In medical-related mold programs, small variation can affect part consistency, flash risk, and production repeatability in deeper or more sensitive cavity structures.

This is one reason many mold buyers spend more time evaluating the replacement-part strategy after they have already experienced downtime, rejects, or cavity drift.

A Practical Buyer Checklist

If you are ordering replacement mold components for a multi-cavity tool, these are worth checking before release:

• What is the functional datum of the part?
• Which dimensions are fit-critical, not just print-critical?
• Will the replacement be installed as a drop-in spare, or is fitting expected?
• Is the machining route consistent with the previously approved part?
• Are the key relationship features being inspected?
• Is the supplier experienced in repeat orders, not just first-batch supply?

Those questions usually tell you more than a simple quotation sheet.

Final Thought

In multi-cavity injection molds, interchangeability is not a luxury. It is part of production control.

A replacement part that only looks correct on paper may still create downtime, leakage, flash, or stability problems after installation. A part that is truly interchangeable helps the mold return to production faster and with less risk.

That is why experienced buyers do not evaluate replacement components by price alone. They evaluate whether the supplier understands fit, repeatability, and how a spare part behaves in the mold after installation.

For readers who want a deeper reference on how precision mold components support multi-cavity mold performance, this overview is useful: precision mold components.
